Introduction
Ask five contractors which carbide grade cuts pavement best, and you'll likely get five different answers. That's not indecision. It's the reality of road milling.
A tool that shines in soft asphalt can chip apart the moment it hits a hard aggregate seam or a strip of reinforced concrete. Road-milling tools face abrasion, impact, vibration, heat, and shifting surface conditions—sometimes in the same pass.
On one asphalt project near Amsterdam, Wirtgen documented crews replacing older carbide picks twice a day, while a newer pick line only needed daily swaps. That gap shows up in uptime, labor, and cost per lane-mile.
Carbide grade selection affects cutting performance, tool life, surface quality, replacement frequency, and total job cost. This article breaks down what makes up a carbide grade, how to match grade properties to the material you're milling, how to read failure patterns, and why the full tool system matters more than grade alone.
Key Takeaways
- Carbide grades trade hardness, wear resistance, strength, and toughness; raising one often lowers another.
- Asphalt, plain concrete, aggregate-rich pavement, and reinforced concrete each stress a tool differently.
- Match tougher grades to impact and vibration, harder grades to abrasion; confirm both with supplier data.
- Judge tools by service life, downtime, and total cost per project, not sticker price.
What Are Carbide Grades for Cutting Tools?
A carbide grade is a controlled recipe: a specific combination of tungsten carbide (WC) particle size, metallic binder content, and microstructure. That mix is engineered to give a cutting edge a particular balance of hardness, wear resistance, strength, and toughness. Change the grain size or binder ratio, and the tool performs differently, even if the tip looks identical.
Most road-milling tools use cemented tungsten carbide tips brazed onto a steel body. Grade names and numbering systems aren't standardized across manufacturers, which creates real confusion in the field.
Wirtgen's GENERATION X² and GENERATION PRO picks are application-branded product lines, not published grain-size or cobalt-content specifications. A pick marketed as "C²" for concrete milling isn't the same thing as an ANSI or ISO C2 machining classification, even though the label looks similar.

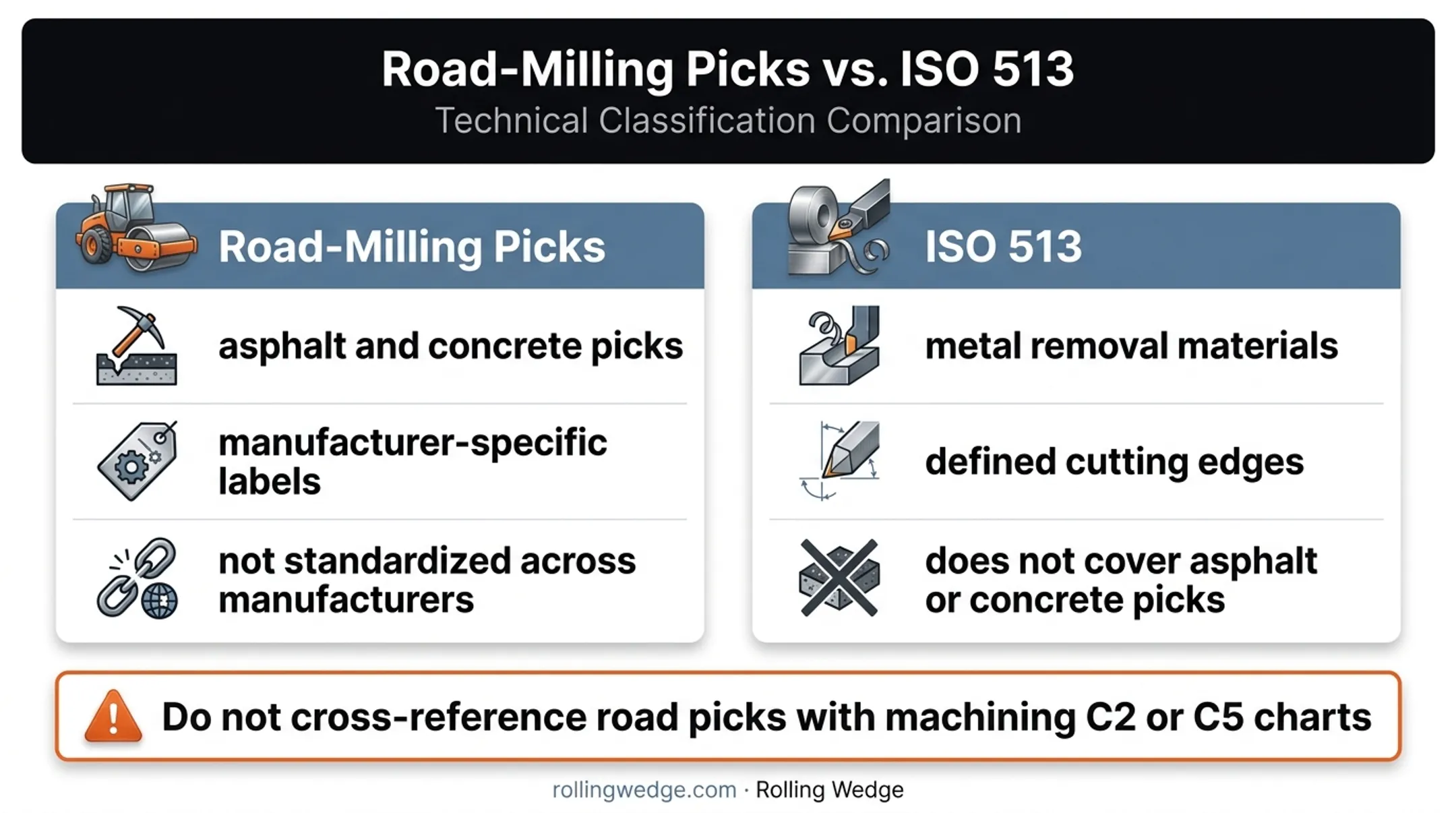

The ISO 513 standard classifies hard cutting materials for metal removal with defined cutting edges. Its scope doesn't extend to asphalt or concrete picks, which is one reason cross-referencing a road pick against a machining C2/C5 chart can lead you astray. Confirm which classification system, if any, a supplier is actually using before comparing grades across brands.
A carbide grade is also not the same thing as:
- Surface coatings or treated layers designed to address a specific wear mode
- Cutting-edge geometry, including angle, thickness, and shape
- Tool-body design, including the steel holder and shank
- Brazing quality or retention method
- The broader milling system, including drum design and machine settings
Each variable affects performance independently of the underlying grade. A premium grade brazed poorly onto a weak shank still fails early. No coating or geometry compensates for the wrong material fundamentals, and vice versa.
Core Components of a Carbide Grade
Four material variables determine how a carbide cutting edge responds to road-milling loads.
Carbide Particle Size and Microstructure
Tungsten carbide grain size ranges from submicron to coarse, and it shapes tip behavior under load:
- Finer grains favor hardness and resistance to edge rounding, useful against pure abrasion
- Coarser grains favor impact strength and fracture toughness, useful against shock loading
Kennametal notes that, with other variables held constant, larger grains generally lower hardness. No manufacturer data establishes one grain size as universally best for road picks. The right structure depends on whether abrasion or impact dominates your job.
Binder Content and Composition
Cobalt is the most common metallic binder in cemented carbide, though nickel and other additives appear in some formulations.
Binder level sets the hardness-toughness balance:
- More binder lowers hardness but raises impact strength and fracture toughness
- Less binder increases hardness and wear resistance, at the cost of brittleness under shock
That trade-off matters for interrupted cuts and machine vibration, both common in road milling. A grade optimized purely for hardness may hold an edge in clean, uniform material, then crack the first time it hits a buried rock or a seam of reinforced concrete.
Hardness, Toughness, and Wear Resistance
These terms get used interchangeably, and that's a mistake.
Hardness and wear resistance describe how well a tip resists gradual material removal from abrasive contact. Toughness describes something different: whether the tip survives a sudden shock or edge impact without chipping or fracturing.
A grade can score well on one and poorly on the other. Treating hardness as the only measure of quality is how contractors end up with tools that wear beautifully in a lab test, then shatter on the first pass through aggregate-rich pavement.
Grade and Coating Are Not Interchangeable
A carbide substrate grade and a surface coating solve different problems. The substrate determines the tool's baseline hardness-toughness balance; a coating, where used, targets a specific failure mode like abrasive scratching or thermal degradation at the surface.
Some road-milling tips use layered constructions. Wirtgen's PCD tip, for instance, adds a diamond-particle upper layer over a tungsten-carbide substrate.
Conventional coatings are not confirmed as standard on typical cemented-carbide road picks. Before you treat a "grade" claim as covering surface treatment, ask the manufacturer what protects the tip and which failure mode it targets.
Benefits of Carbide Grades / Why Road Milling Relies on Carbide
Carbide earns its place on a milling drum because nothing else balances hardness and durability as well at this price point.
Wear resistance keeps the edge usable. Asphalt aggregate, mineral fillers, and concrete constituents are abrasive by nature. A carbide tip's hardness lets it keep cutting long after a softer material would round over.
Toughness and strength absorb the chaos of the job site. Road milling isn't a clean, continuous cut. Tools deal with:
- Intermittent loading as the drum rotates through variable material
- Machine vibration transmitted through the drum and holder
- Hard inclusions like buried rock or debris
- Sudden changes in material density between asphalt, base layer, and subgrade
A tool optimized only for wear resistance can shatter the moment it meets one of these conditions.
Matching grade to application drives measurable outcomes. Wirtgen's field comparison at an A9 milling project near Amsterdam shows the difference in practice. Crews using older picks swapped tools twice a day, while a newer round-shank pick line needed replacement only once daily.
That's roughly half the tool changes, with less downtime, more predictable production, and more consistent milled-surface profiles. The result reflects a whole-pick outcome rather than an isolated cobalt-content effect.
Carbide still has limits. A poorly matched grade still chips, fractures, or wears out fast when:
- Operating conditions push excessive heat or impact into the tip
- Retention or brazing is substandard
- Geometry doesn't suit the material
- The grade wasn't chosen for the dominant failure mode on that job
Carbide performance is a system outcome, not a single-material guarantee.
What to Consider When Choosing the Best Carbide Grade for Road Milling
The right grade depends on the material being removed, cutting forces, the milling machine itself, tool geometry, and which failure mode you're actually fighting.
Milling Material and Surface Variability
Different pavements load a tool differently:
- Asphalt – softer overall, but binder and base layers can be surprisingly hard and abrasive
- Plain concrete – higher compressive strength, more uniform abrasion
- High-strength concrete – generally 6,000+ psi compressive strength, demanding greater wear resistance
- Aggregate-rich pavement – hard mineral inclusions accelerate localized wear
- Mixed asphalt-and-concrete surfaces – forces the tool through two failure modes in one pass
- Reinforced concrete – steel mesh or rebar adds impact loading that pure abrasion-resistant grades aren't built for
A grade tuned for one of these can underperform badly on another.
Dominant Wear or Failure Pattern
Before changing grades, diagnose what's actually failing:
- Gradual abrasive wear – tip rounds over evenly, pointing to insufficient hardness or wear resistance
- Edge chipping – small fractures at the cutting edge, often a toughness or grain-size mismatch
- Catastrophic fracture – tip breaks off entirely, usually impact-related, sometimes retention-related
- Thermal damage – discoloration or softening, pointing to cooling or speed issues rather than grade
- Pullout – tip separates from the tool body, a brazing or retention problem, not a grade problem
- Uneven wear – tool not rotating properly in its holder
Match the actual pattern to the actual cause before assuming a harder grade fixes it.

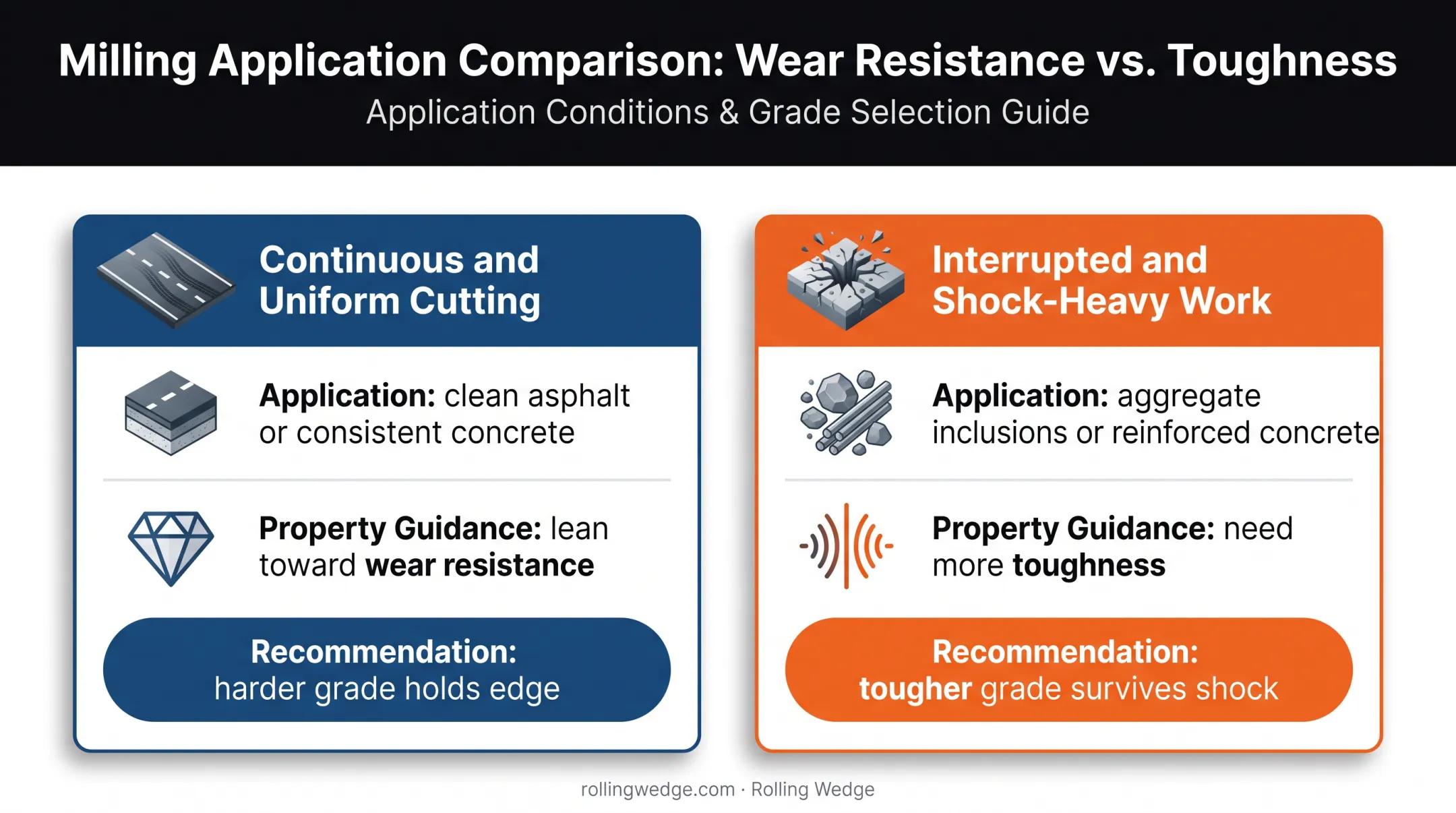

Hardness Versus Toughness
A very hard, wear-resistant grade holds an edge well in clean, uniform material but can be vulnerable to impact and vibration. A tougher grade sacrifices some wear resistance to survive shock loading.
Practical rule: the more continuous and uniform your cutting, such as clean asphalt or consistent concrete, the more you can lean toward wear resistance. The more interrupted and shock-heavy the work, such as aggregate inclusions or reinforced concrete, the more you need toughness.
Grain Size and Binder Balance
Grain size and binder percentage move together, not independently. Finer grain plus lower binder pushes toward hardness. Coarser grain plus higher binder pushes toward toughness. No manufacturer datasheet or independent reference establishes one universal ratio for road-milling picks. Confirm specifics with your supplier rather than assuming a spec sheet built for machining tools applies directly.
Machine, Drum, and Operating Conditions
A well-matched grade can still fail if operating conditions work against it. Check:
- Milling depth and forward speed, since deeper cuts and faster advance increase chip size and cutting force
- Drum rotational speed and tool spacing
- Water or cooling delivery, since plugged spray bars raise tip temperature
- Machine vibration and whether tools are rotating freely in their holders
Excessive heat or impact from machine settings can defeat even a well-chosen grade.
Total Cost and Field Validation
Compare tools on cost-per-area or cost-per-project, not unit price. Track:
- Tool price and installation labor
- Replacement intervals and downtime
- Production rate and surface finish
- Machine wear from vibration and impact
Run a controlled field trial, same material and same machine settings, before standardizing a grade across your fleet. Record the actual failure mode and output, not just how long a tip "seemed" to last.
How Rolling Wedge Can Help
Everything above assumes you're choosing between carbide grades. Rolling Wedge takes a different approach.
Rolling Wedge, LLC manufactures milling tools in Peoria, Illinois, built around a proprietary rolling-wedging-lifting cutting action instead of a traditional carbide-pick impact cut. Rather than optimizing a carbide grade to survive shock and abrasion, the design works with the material itself.
Asphalt and concrete both have tensile strength around 20% of their compressive strength, and the wedging action exploits that weakness instead of fighting it. That shifts the cutting-force, vibration, and wear equation contractors normally weigh when comparing carbide grades. Carbide picks still have a role: a few at each end of the drum cut a square edge, and since they don't take the brunt of the mill, they last longer too.
What this looks like in practice:
- Nine carbide teeth per tool, with a rolling action that reduces heat buildup
- Handles asphalt, concrete, mixed surfaces, and rebar-reinforced concrete without mid-job tool swaps
- Fits existing Skidsteer planers and larger milling platforms, including Roadtec and Caterpillar equipment
Replacement and downtime:
- Tool replacement roughly every 1 to 3 months, versus twice-weekly changes common with carbide picks
- Full drum changeout in about 20 minutes, versus 1 to 2 hours for a carbide-pick swap
- Asphalt milling: operating lives of 10x and longer than carbide picks have been reported in the same environment
Rolling Wedge tools carry a higher per-unit price than carbide picks, roughly a five-to-one difference by the company's own figures. That's why the comparison has to happen at the project level, not the per-pick level.
If your current carbide costs come from frequent replacement, labor-heavy swaps, and downtime, those numbers belong in the comparison too. Rolling Wedge offers an online milling cost comparison and ROI calculator so contractors can weigh current carbide-pick costs against cost-per-area results before switching.
Conclusion
Choosing a carbide grade for road milling is an application-matching exercise. Surface composition, impact, vibration, machine settings, tool geometry, and the failure pattern you're seeing matter more than picking the hardest or most expensive tip on the shelf.
Two tools carrying the same grade name from different manufacturers can behave completely differently. Confirm real performance by checking supplier data, watching how your tools fail on the job, and calculating cost per project—not per-unit tip price.
Before you lock in a grade across the fleet:
- Review tool performance periodically against real job conditions
- Validate any grade change with a controlled field trial first
- If carbide tools keep causing downtime, high replacement costs, or stalled drums on reinforced concrete, evaluate an alternative cutting system instead of cycling grades again
Frequently Asked Questions
Which carbide is used for cutting tools?
Road-milling tools typically use cemented tungsten carbide tips—tungsten-carbide particles in a metallic binder, usually cobalt. Exact grade (grain size, binder ratio, and class) varies by manufacturer.
What is the difference between C2 and C5 carbide?
C2 and C5 are machining-blank classifications, not published road-milling pick specs. C2 prioritizes wear resistance for cast iron and nonferrous work; C5 favors toughness for interrupted cuts.
What are the different grades of carbide?
Grades group by grain size (submicron to coarse) and binder content. Those two factors set hardness, wear resistance, impact strength, and fracture toughness. Most makers use their own naming systems.
What is C2 grade carbide?
In Kennametal's machining-tool blank catalog, C2-classified grades are recommended for abrasion resistance in cast iron and nonferrous materials. This isn't a verified specification for asphalt or concrete road-milling picks.
How do you choose a carbide grade for road milling?
Start with the pavement material, abrasiveness, and whether cutting is continuous or interrupted. Then weigh machine settings, tool geometry, and failure patterns, and confirm with supplier data plus a field trial.
Is a harder carbide grade always better for road-milling tools?
No. Greater hardness improves wear resistance but can reduce tolerance for shock, vibration, and interrupted cutting. The right choice balances hardness and toughness for your job conditions.
