Once you're cutting several tool diameters down, deflection, chip evacuation, and heat all start fighting your tool at the same time. What looked like a straightforward straight-line cut on the CAM screen can turn into a broken endmill, a tapered wall, or a scrapped part.
This guide walks through when deep slot milling makes sense, the exact steps to run one successfully, the parameters that actually control the outcome, common mistakes, troubleshooting fixes, and alternatives like plunge and trochoidal milling worth knowing about.
TL;DR
- Deep slots (deeper than ~3× tool diameter) need lower radial engagement and different toolpaths than shallow slots
- Deflection, chip evacuation, and heat are the three failure points that decide deep-slot success
- Ramped entry, trochoidal milling, and plunge milling cut tool stress in closed deep slots
- Match tool choice, stepdown, and coolant delivery to the slot’s depth-to-diameter ratio
- Switch to broaching or wire EDM when milling would cost more time and tooling than it saves
How to Mill Deep Slots in CNC Machining
Step 1: Set Up the Workpiece and Verify Rigidity
Rigidity is the foundation everything else depends on. Skip this step and no amount of clever programming will save the tool.
- Clamp the workpiece solidly and minimize overhang that could amplify vibration under deep cuts
- Confirm fixturing supports the full slot length so the part doesn't flex under side loads
- Check the toolholder and spindle connection for looseness. Deep slots magnify any play in the setup
Sandvik Coromant recommends the shortest possible tool length paired with the largest practical assembly diameter to reduce deflection risk in cavity and pocket milling.
Step 2: Choose Entry Strategy and Rough Out the Slot
Never plunge straight into material with a standard endmill unless it's specifically designed for it. A helical or ramped entry protects the cutting edges from day one.
- Use helical interpolation instead of a straight plunge — Sandvik notes this reduces radial cut load and improves chip evacuation compared to linear ramping

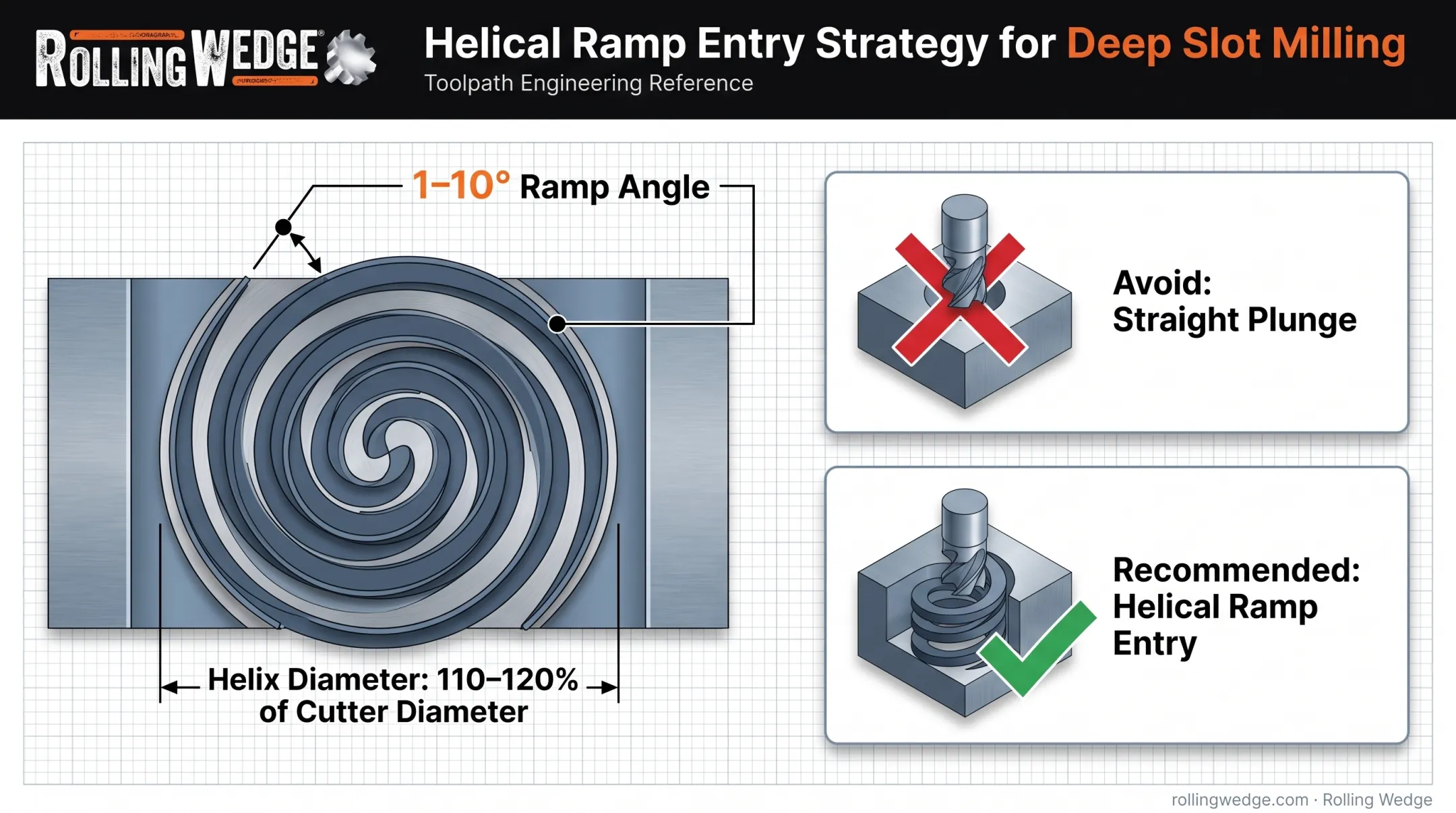

- Program a helix diameter around 110-120% of the cutter diameter, with a starting ramp angle of 1-3 degrees for hard or ferrous materials and 3-10 degrees for softer alloys
- Take light radial stepovers with multiple axial passes instead of one aggressive plunge
- Switch to plunge milling or trochoidal roughing once depth pushes past roughly 3x tool diameter
Step 3: Manage Chip Evacuation and Heat Throughout the Cut
Closed slots trap chips. There's no side escape route like you'd get in an open groove, so evacuation has to be engineered into the program.
- Use through-spindle coolant, high-pressure coolant, or a directed air blast to clear the cutting zone
- Program retract paths with a hook or lift move so the tool clears the wall before rapid travel — a straight retract along the slot wall re-cuts chips
- Watch for chip packing during the cut. It's an early warning sign, not something to ignore until the tool snaps
Lower flute counts leave more chip clearance space in the flute valleys, which matters more as slot depth increases.
Step 4: Finish the Slot and Verify Accuracy
The finishing pass is where you correct whatever the roughing pass couldn't avoid, like taper or minor width drift.
- Run a dedicated finishing pass at light radial engagement to true up wall taper and improve surface finish
- Check slot width, depth, and straightness with gauges or a CMM
- Deburr the edges and confirm the slot meets fit and tolerance requirements before releasing the part
When Should You Mill Deep Slots This Way?
Not every slot needs an aggressive deep-slot strategy. Shallow or open-sided slots often don't require ramped entries or trochoidal roughing at all.
Deep-slot techniques make the most sense for:
- Closed slots, keyways, and internal channels exceeding roughly 3x the tool diameter
- Parts where a rotary side-and-face cutter can't reach or fit the geometry
- Production runs where tool life savings justify programming a more careful toolpath
They become risky when:
- The machine lacks rigidity or spindle power for sustained deep engagement
- Coolant delivery is limited to flood only, with no through-tool option
- The material is highly abrasive or hardened, accelerating wear regardless of strategy
For long, deep, open grooves, a side-and-face cutter can outperform an endmill on stability and material removal rate. Save aggressive endmill strategies for closed geometry where you have no other option.
One-off prototypes can tolerate slower, more conservative parameters. Production runs usually cannot.
What You Need Before Milling Deep Slots
Preparation decides whether the slot machines cleanly or ends with a snapped tool mid-cut.
Equipment and Tooling Requirements
Lock in these three setup essentials before the first cut:
- Rigid toolholder that holds runout down under load
- Shortest stickout the slot geometry allows
- Reliable coolant delivery, preferably through-spindle
Material and Slot Geometry Considerations
Confirm these factors before you pick a tool:
- Slot width
- Depth-to-diameter ratio
- Material hardness
Harder materials usually need fewer flutes and coatings such as TiAlN or AlTiN. Match the final choice to the tool manufacturer's chart for that alloy and engagement level.
Programming and Setup Readiness
Plan the CAM toolpath for ramped entry, controlled stepover, and non-recutting retracts before the program reaches the machine. Catching path errors in simulation costs far less than fixing them at the control after a crash.
Key Parameters That Affect Deep Slot Milling Results
Outcomes hinge on a handful of controllable variables, not raw spindle horsepower.
Depth-to-Diameter Ratio
Beyond roughly 3:1, deflection risk climbs sharply. Left unaddressed, this causes tapered walls and inconsistent slot width across the pass.
Radial and Axial Engagement
Full engagement in a narrow slot traps heat and overloads the cutter on both flutes simultaneously. Excess engagement is one of the fastest routes to chatter, poor finish, or outright tool breakage.
Feed Rate and Stepover
These two control chip thickness and cutting force per pass. Mismatched feed causes rubbing or burnishing instead of clean cutting, which wears edges prematurely.
Coolant and Chip Evacuation Method
Deep slots trap both chips and heat with no side escape path. Poor evacuation leads to recutting, heat buildup, and shortened tool life — often all three at once.

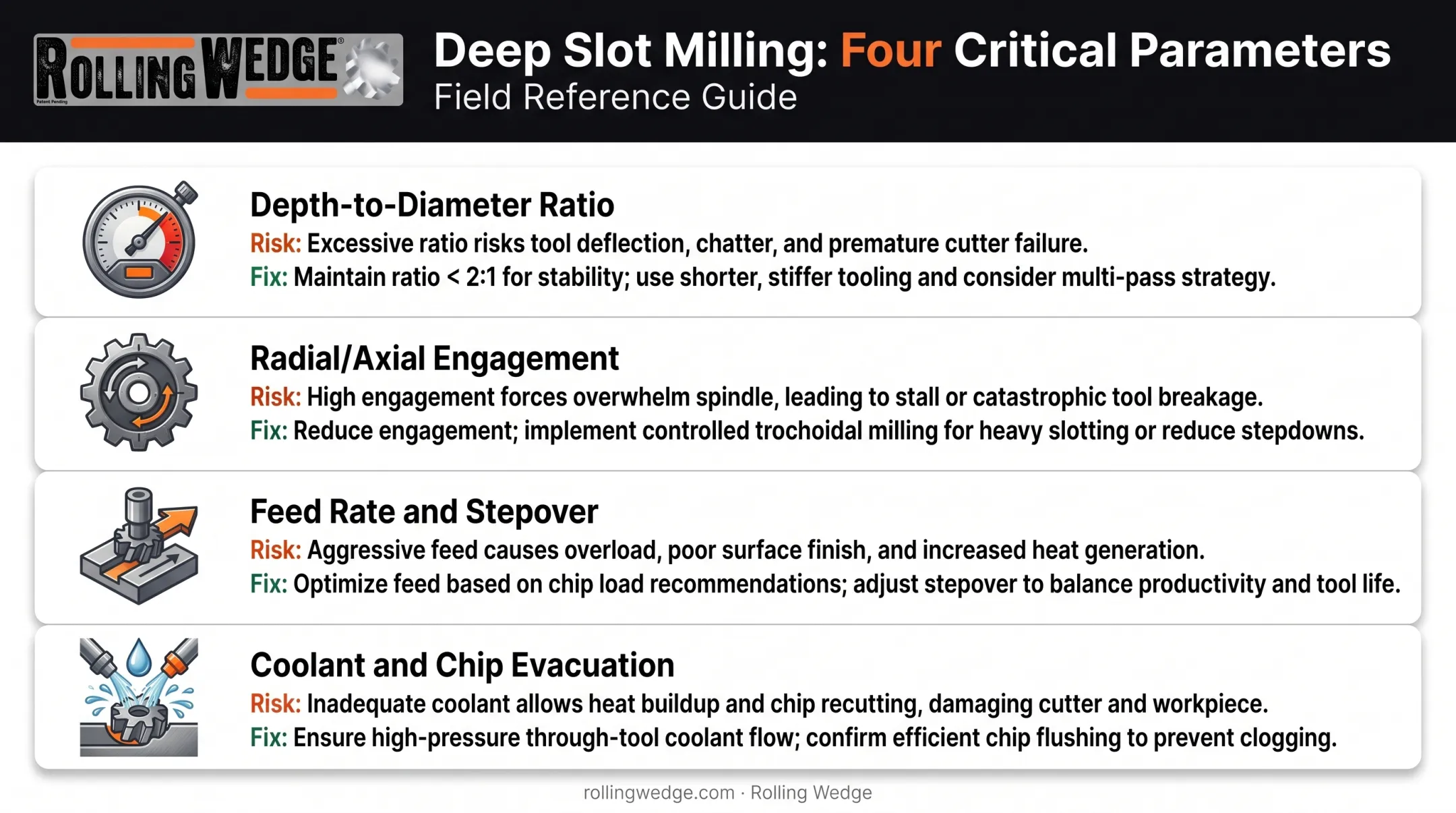

| Parameter | Risk if Ignored | Fix |
|---|---|---|
| Depth-to-diameter | Wall taper, inconsistent width | Reduce stepdown as ratio increases |
| Radial/axial engagement | Chatter, tool breakage | Lower engagement, add passes |
| Feed rate and stepover | Rubbing, edge wear | Match feed to chip load target |
| Coolant and chip evacuation | Recutting, heat damage | Through-spindle or directed air |
Common Mistakes When Milling Deep Slots
These four mistakes account for most deep-slot tool failures on the shop floor:
- Plunging straight into material instead of using a ramped or helical entry
- Choosing excessive tool stickout relative to slot depth, which multiplies deflection
- Ignoring chip evacuation until packing has already damaged the tool
- Running one deep pass instead of staged roughing and finishing passes
Troubleshooting Issues While Milling Deep Slots

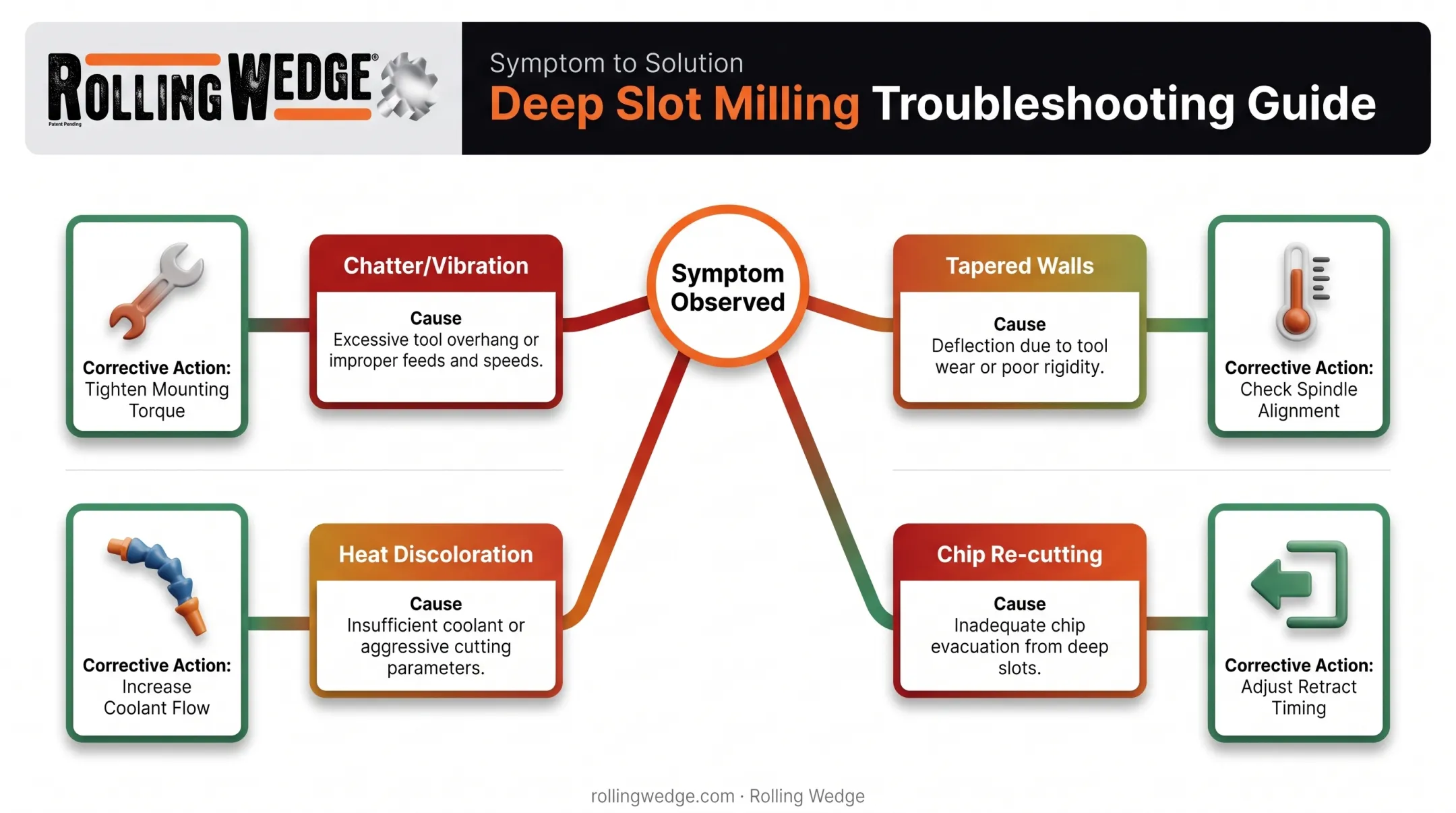

Most deep-slot problems trace back to one of three root causes: deflection, heat, or poor chip control. Match the symptom you see to the checks below before you start changing feeds and speeds at random.
Chatter or Vibration During the Cut
Excessive stickout, an aggressive stepdown, or a weak toolholder connection usually starts the vibration. Shorten tool overhang first, then reduce depth of cut and confirm the holder is gripping the shank properly.
Tapered or Inconsistent Slot Walls
When walls drift out of square, deflection is stacking up across passes. Recalculate deflection for the tool geometry you are running, then cut radial engagement or stepover until the wall stays true.
Heat Discoloration or Rapid Tool Wear
Blueing and short tool life almost always mean coolant never reaches the cut. Check pressure and nozzle aim at the flute exit, or move to through-spindle delivery if the machine supports it.
Chips Re-Cutting on Retract
A straight retract that rides back along the slot wall drags chips through the finished surface. Reprogram a hook-style retract so the tool clears the wall before the rapid move begins.
Alternatives to Standard Deep Slot Milling
Sometimes a different process beats straight slot milling entirely, depending on depth, material, and part volume.

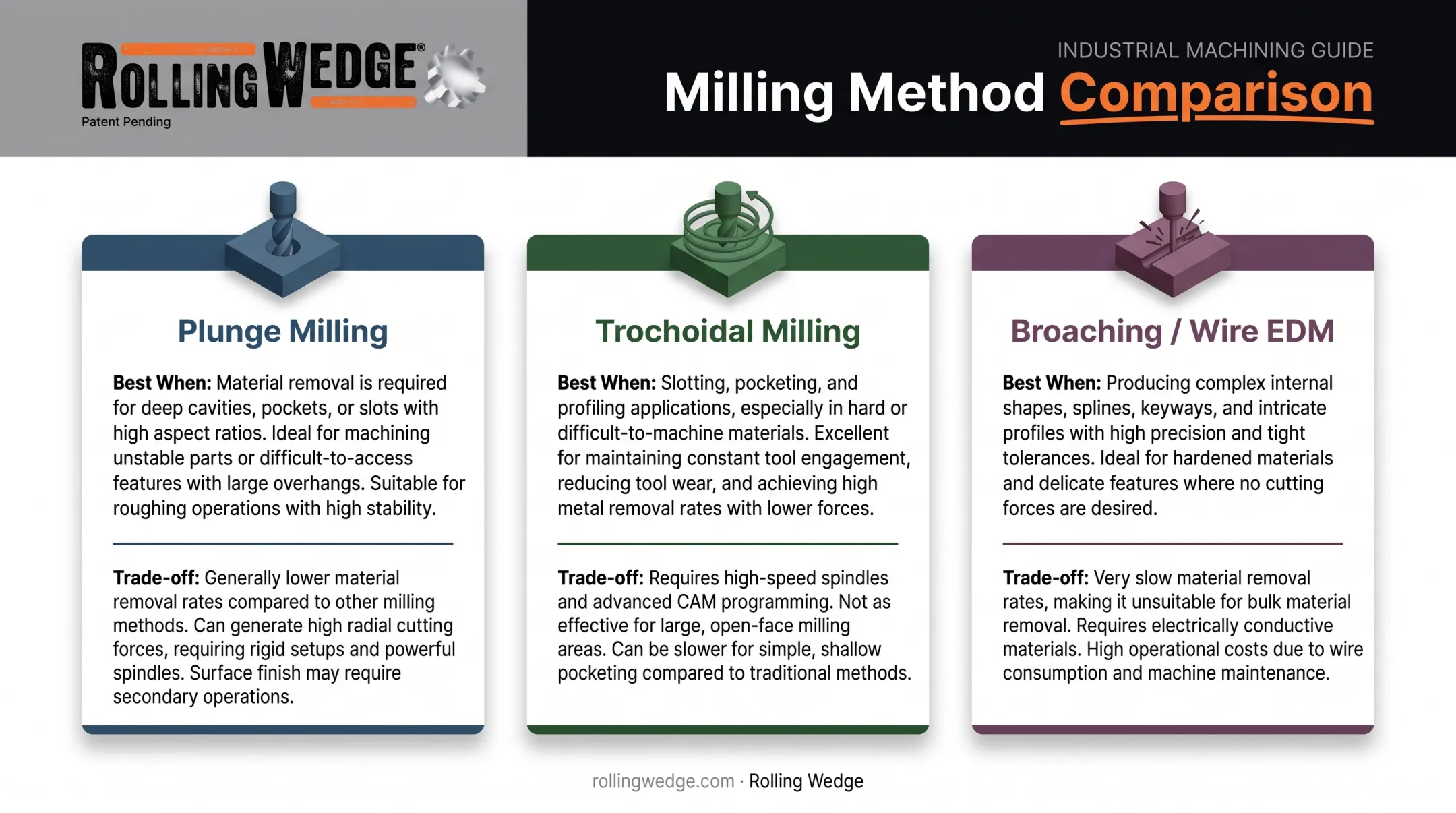

| Method | Best when | Trade-off |
|---|---|---|
| Plunge milling (Z-axis roughing) | Long tool overhang, unstable side-milling, or very hard materials with unmanageable radial forces | Rougher walls that need a follow-up finishing pass |
| Trochoidal milling | Deep, narrow slots that benefit from constant, controlled engagement and higher feed rates | More complex CAM programming than a straight-line pass |
| Broaching or wire EDM | Ultra-narrow, very deep slots or hardened materials with limited milling access | Slower and costlier for small-batch or prototype work than CNC milling |
For trochoidal paths, Sandvik guidance keeps radial engagement below roughly 20% of cutter diameter while allowing axial engagement up to 2x the diameter. Wire EDM only works on through-cuts—it is not a substitute for a blind slot.
Conclusion
Deep slot milling succeeds when you manage depth-to-diameter ratio, tool rigidity, and chip evacuation proactively, not reactively after the first broken tool. Most failures trace back to one of two things: skipping staged roughing passes or underestimating coolant delivery needs.
Matching the right strategy (standard slotting, plunge milling, or trochoidal paths) to the job geometry is what balances speed, accuracy, and tool life. Nail that match—and keep depth, rigidity, and chip flow under control—and deep slots stop being the riskiest cut on the print.
Frequently Asked Questions
What is slot milling?
Slot milling is a CNC process where a rotating cutter forms a precise internal channel, engaging both sidewalls at once. This differs from drilling, which only produces round holes rather than a defined channel shape.
What is the recommended depth of cut for slot milling?
Depth of cut depends on tool diameter and material, but as a general rule, axial stepdowns should shrink as slot depth exceeds roughly 3x the tool diameter to control deflection.
How deep can an endmill cut?
Most standard endmills reliably cut to about 3-4x their diameter before deflection and chip evacuation issues demand reduced engagement, shorter stickout, or an alternative strategy like plunge milling.
Why do deep slots cause more tool breakage than shallow slots?
Full engagement on both sidewalls traps heat and chips at once, increasing radial force and deflection compared to an open-sided cut where chips have somewhere to go.
When should I use trochoidal milling instead of straight slotting?
Trochoidal paths help when you need constant tool load and higher feed rates in deep or long slots that are prone to chatter under conventional slotting.
Can slot milling handle hardened or abrasive materials?
Yes, with the right carbide coatings such as TiAlN or AlTiN, staged passes, and adequate coolant, slot milling can machine hardened steels, titanium, and nickel alloys effectively.
