That's a mistake. A tool that wears out in half the expected time is telling you something about the surface, the machine, or the setup, not just the tool itself. Contractors, municipalities, and operators who identify the actual cause avoid repeat failures instead of just replacing the same part over and over.
This article breaks down the material conditions, heat, impact loading, vibration, and machine-setup issues behind milling tool wear. It also covers the warning signs to watch for and practical steps to extend tool life on both asphalt and concrete jobs.
Key Takeaways
- Wear comes from abrasion, heat, impact, vibration, fatigue, and machine mismatch, often several at once.
- Hard aggregate, embedded rebar, pavement joints, and unknown subsurface conditions each create distinct wear signatures.
- Rising vibration, noise, rough cuts, and heat discoloration signal trouble before a tool fails outright.
- Matching tools to the surface and inspecting drums routinely prevents most avoidable failures.
- Multi-surface tool designs can cut down on tool-change interruptions, but check compatibility with your machine first.
Common Causes of Milling Tool Wear
Milling tool wear is the progressive loss of cutting-edge shape, carbide material, or overall performance that happens as a tool repeatedly contacts pavement under load. Gradual wear is expected. Every tool loses some material with each pass.
Accelerated wear and sudden failure are different problems. They point to a mismatch between the tool, the surface, and the machine setup rather than normal use.
Most milling projects involve more than one wear mechanism at once. A crew troubleshooting frequent tool changes should look at the surface, the tool selection, the drum condition, and the operating method together, not adjust a single variable and hope for the best.
Abrasive Aggregate and Hard Surface Materials
Asphalt and concrete both contain hard mineral aggregate that rubs, scrapes, and impacts the cutting edge with every rotation. Over thousands of cycles, that contact strips away carbide and dulls the tool's working edge.
Research on asphalt-tooth wear backs this up directly. A study on the effect of tooth wear on asphalt milling parameters selected teeth with 4mm of height loss and found that compensating for that wear by cutting deeper actually increased cutting force above what a new tooth required.
Worn teeth don't just cut less efficiently. They make the whole machine work harder.
Several conditions accelerate abrasive wear:
- High-strength or surface-hardened concrete
- Coarse or highly abrasive aggregate blends
- Exposed aggregate surfaces
- Inconsistent pavement composition across a single job
Standard aggregate hardness tests, like the Los Angeles abrasion test, measure degradation resistance in a controlled setting. They don't translate directly into a field tool-life number, so treat aggregate hardness as a risk factor, not a countdown timer.
Heat, Friction, and Overloading
Excessive friction and poor cutting action raise temperatures at the cutting zone fast. Carbide tips can soften, deform, or break down faster once heat builds past a certain point.

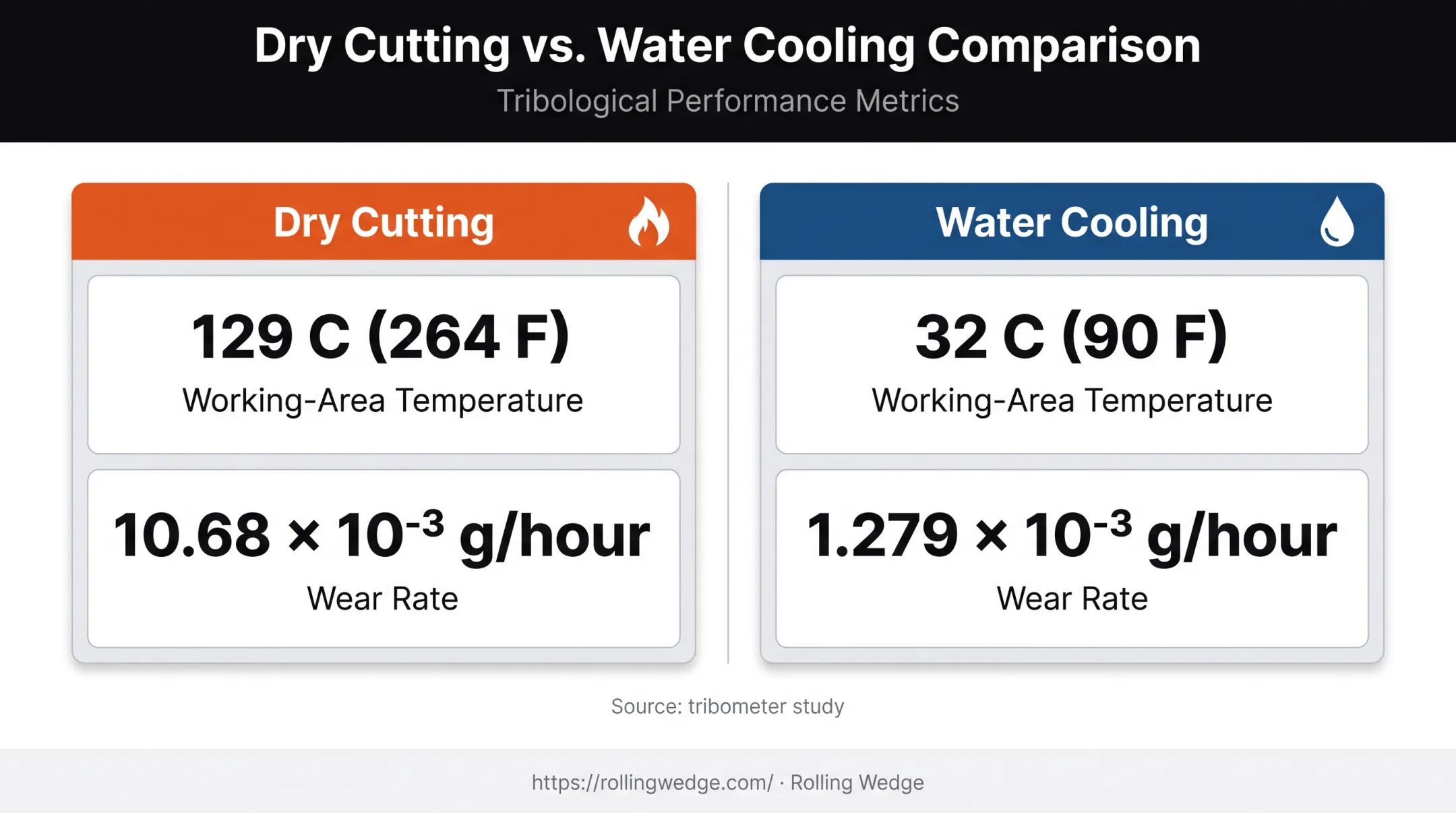

A tribometer study testing asphalt cutter teeth under dry and water-assisted conditions recorded working-area temperatures of 129°C (264°F) dry versus 32°C (90°F) with water cooling.
Wear rates followed the same pattern: roughly 10.68 x 10⁻³ g/hour dry, compared to 1.279 x 10⁻³ g/hour with water. These are lab conditions, not a field guarantee, but the gap shows how much heat accelerates material loss.
Watch for these heat-related symptoms:
- Discolored tool shanks or holders
- Deformed or "mushroomed" tips
- Sudden loss of cutting efficiency
- Tools needing replacement far more often than usual
Excessive depth, unsuitable travel speed, and poor material evacuation all raise force and friction at the cutting zone. Pushing a machine to keep pace on a schedule often does more damage than the schedule slip it was meant to avoid.
Impact, Vibration, and Fatigue
Interrupted cuts create shock loads that chip, crack, or fracture a tool instead of wearing it down gradually. Common culprits include:
- Buried obstructions and hard inclusions
- Concrete joints and embedded rebar
- Uneven pavement transitions
- Sudden changes in material density
Wirtgen's technical documentation notes that nonhomogeneous milling material can generate abrupt impact-load peaks, unlike the steadier engagement typical of homogeneous asphalt. Machine bounce, drum chatter, and loose components compound this by spreading load unevenly across the tool array instead of distributing it.
A 2024 wear inspection on a Wirtgen cold planer documented missing picks and more than half the pick holders worn beyond service life, recommending full replacement of both. The report listed carbide fracture and poor rotation as possible wear categories, though it didn't confirm vibration as the specific cause in that instance.
That gap is a useful reminder: field failures often need direct inspection to pin down the mechanism.
Tool, Drum, and Machine Mismatch
Wear isn't always about the material. Sometimes it's about the setup. Common mismatch issues include:
- Incorrect tool selection for the pavement type
- Worn or loose holders
- Improper tooth spacing across the drum
- Damaged drum components or excessive runout
- Poor mounting or drum-attachment incompatibility
Using a tool built for one material on a mixed asphalt-and-concrete job often leads to premature wear or an inconsistent finish. Always confirm operating limits against manufacturer documentation for your specific machine, drum, and tool combination rather than relying on general assumptions.
What Happens If Milling Tool Wear Is Ignored
Worn tools don't fail quietly. Production rate drops first, followed by rising machine load as the engine or hydraulics compensate for a tool that's no longer cutting cleanly. Cut depth becomes inconsistent, and the milled surface starts showing an uneven finish.

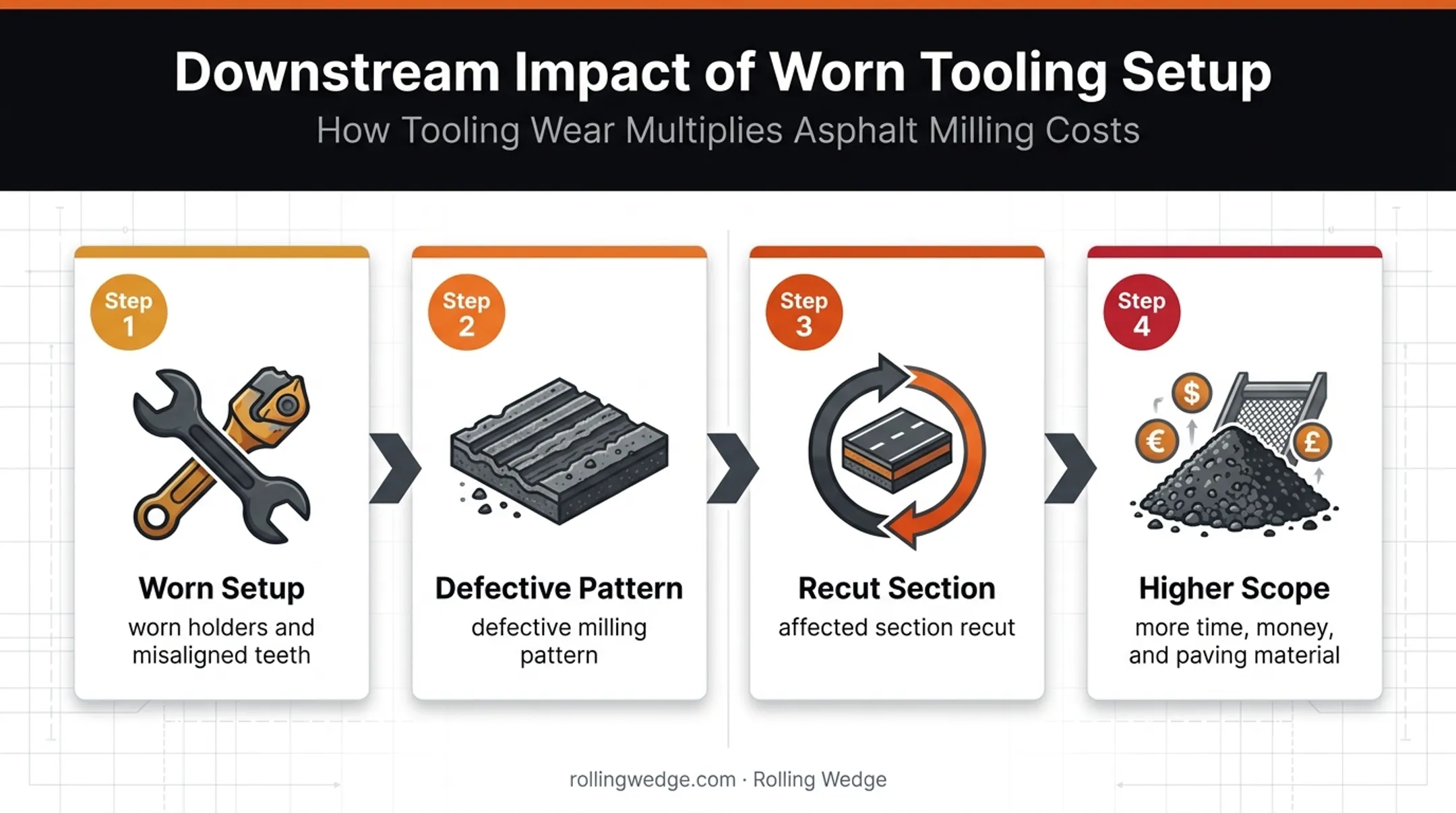

An account published in AsphaltPro on maintaining milling teeth describes exactly this chain reaction: worn holders and misaligned teeth produced a defective milling pattern, forcing the crew to recut the affected section. That rework cost time and money the schedule hadn't planned for, and left the road needing more paving material than originally scoped.
Left unaddressed, wear tends to cascade:
- Unplanned downtime for emergency tool changes
- Rework or recutting of substandard passes
- Damaged holders or drum components from continued use
- Increased operator fatigue from a rougher-running machine
- Added stress on hydraulic systems compensating for poor cutting action
Industry sources rarely pin a precise dollar figure on downtime or replacement costs. The pattern is still clear: catching wear early costs less than fixing what it breaks downstream.
Warning Signs of Milling Tool Wear
Early detection lets you correct operating conditions before a worn tool damages adjacent components or fails mid-shift. Four signs to check for:
- Increased vibration or chatter - bouncing, unusual noise, or a change in how smoothly the machine moves forward
- Reduced cutting performance - slower production, higher machine load, inconsistent depth, or more resistance from the material
- Visible tool damage - rounding, flattening, cracking, chipping, or heat discoloration during inspection
- Rough milled surfaces - ridges, uncut strips, tearing, or a finish that doesn't match spec
Any one of these on its own might be a fluke. Two or more together usually mean it's time to inspect the whole setup, not just swap the nearest damaged tool.
How to Prevent Milling Tool Wear
Preventing milling tool wear takes more than a single maintenance task. Correct tool selection, controlled operation, stable equipment, and routine inspection all have to work together.
Match the Tool to the Surface and Milling Application
Tool selection should account for the surface type, aggregate characteristics, whether rebar is present, cut depth, drum type, and machine size. A tool that performs well on straight asphalt may not hold up on mixed or reinforced surfaces.
For contractors comparing alternatives to traditional carbide-pick tooling, Rolling Wedge's rolling-wedging-lifting action puts material into tension instead of hammering it, and handles asphalt, concrete, and some grades of rebar without mid-job tool swaps.
Replacement intervals run roughly every 1 to 3 months, versus the twice-weekly changes common with carbide picks on similar applications.
That said, always confirm compatibility with your specific milling machine or attachment. A tool built for multi-surface work should still match your drum size, machine platform, and project conditions before you commit to it fleet-wide.
Control Engagement, Speed, and Cutting Load
Aggressive engagement, excessive cut depth, and unsuitable travel speed increase both impact and heat at the cutting zone. Forcing a machine through a hard spot instead of adjusting speed usually costs more in tool damage than it saves in time.
Practical guardrails:
- Follow the equipment and tool manufacturer's operating guidance as a baseline
- Adjust approach speed as pavement conditions change across a job
- Avoid abrupt depth or speed changes that create shock loading
- Monitor vibration, machine response, and surface quality in real time instead of locking one setting for the full job
Maintain the Drum, Holders, and Machine Setup
Worn or loose holders, damaged mounting points, and poor alignment transfer excessive force onto tools that would otherwise perform fine. A quick pre-shift sequence catches most of these issues before they escalate:
- Check tool seating and holder condition for looseness or cracking
- Clear debris and buildup from the drum
- Inspect fasteners for tightness
- Look for signs of uneven loading or misalignment across the drum
- Flag any damaged components for review before the shift starts
Recurring or severe failures, especially ones tied to drum alignment or holder integrity, warrant a qualified technician or manufacturer evaluation rather than a repeated field fix.

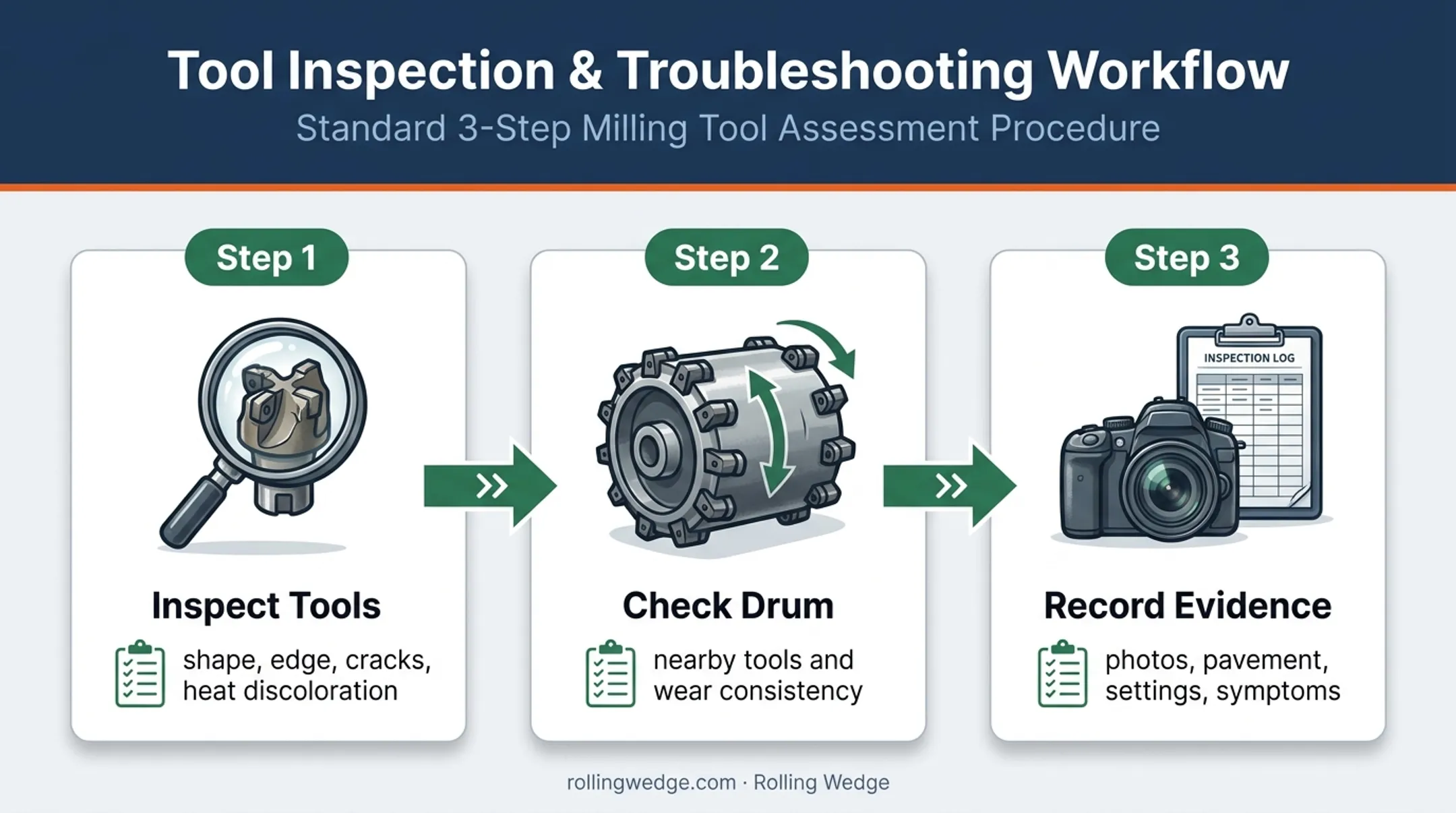

Inspect Tools and Manage Wear Before Failure
Schedule visual inspections during and after milling. Look at tool shape, edge condition, cracking, missing material, heat discoloration, and wear consistency around the drum.
Replacing one visibly damaged tool without checking the rest of the drum often misses the underlying problem. If one tool failed early, others nearby may be close behind. With Rolling Wedge Milling Tools, a tool missing one or two of its nine teeth is still usable, while three or more means replacement; rotating usable worn tools back in keeps wear even for maximum tool life.
Photograph wear patterns, note the pavement type, and record machine settings with any operating symptoms. That documentation makes the next troubleshooting cycle much faster.
Tips for Long-Term Prevention and Control
Consistent wear management comes down to habits, not one-off fixes:
- Assess before you cut. Combine pre-job surface assessment with pre-shift equipment checks and post-job tool inspection.
- Train the eye. Operators should be able to tell normal wear apart from abrasive wear, impact chipping, heat damage, and holder-related problems.
- Keep a wear log. Record project material, tool configuration, drum type, operating conditions, replacement timing, and failure location for every job.
- Use the data you already have. Inspection photos, machine load readings, and manufacturer guidance can reveal recurring patterns across projects.
- Review periodically. Look back at replacement and downtime records every few months to see if a different tool design or maintenance interval would lower total project cost.
Conclusion
Milling tool wear on asphalt and concrete has identifiable causes: abrasive materials, heat, impact, vibration, fatigue, mismatched tooling, and setup issues. None of these are mysteries once you know what to check.
Early inspection, controlled operation, verified equipment compatibility, and documented wear patterns cut down on avoidable downtime, rework, and replacement costs.
Contractors evaluating any milling tool, including a multi-surface option like Rolling Wedge, should weigh the full application: surface material, machine, drum, operating conditions, and required finish. Tool price alone doesn't tell you what a tool will actually cost you over a project.
Frequently Asked Questions
What does tool wear mean?
Tool wear is the gradual loss of cutting performance or material caused by repeated contact, friction, heat, abrasion, and impact. In asphalt and concrete milling, it shows up as duller edges, reduced cutting efficiency, and eventually the need for replacement.
What are the different types of tool wear?
Common categories include abrasive wear, flank or edge wear, chipping, cracking, plastic deformation, and fatigue-related failure. On pavement jobs, the dominant pattern usually tracks surface hardness, aggregate type, and drum speed or depth of cut.
What is the difference between crater wear and flank wear?
Flank wear builds on the clearance or working edge from rubbing and abrasion. Crater wear forms on the rake or chip-contact face from heat and friction. On milling teeth, both usually show up as facet wear rather than classic lathe geometry.
What are the three types of tool failure in machining?
The three common types are gradual wear, edge fracture or chipping, and catastrophic breakage or deformation. In milling, that means steady edge rounding, chipped carbide from impact, and full tool loss from severe shock or fatigue.
