Milling a radius sounds straightforward. Pick a tool, run the program, done. But results vary wildly depending on tool selection, feed and speed settings, and toolpath strategy. Get any one of these wrong and you're looking at gouging, chatter, or a feature that's physically impossible to cut.
This guide covers when to mill a radius, what setup you need, the step-by-step technique, the parameters that matter most, common mistakes, and troubleshooting fixes.
TL;DR
- Choose a corner-radius, ball, or dedicated radius tool for constant vs. variable features
- Match tool radius to design radius, then control feed, speed, and engagement
- Internal radii can't be smaller than the tool: a cutter won't cut a tighter corner than itself
- Most failures come from oversized tools, wrong feed math, or skipped compensation setup
How to Mill a Radius

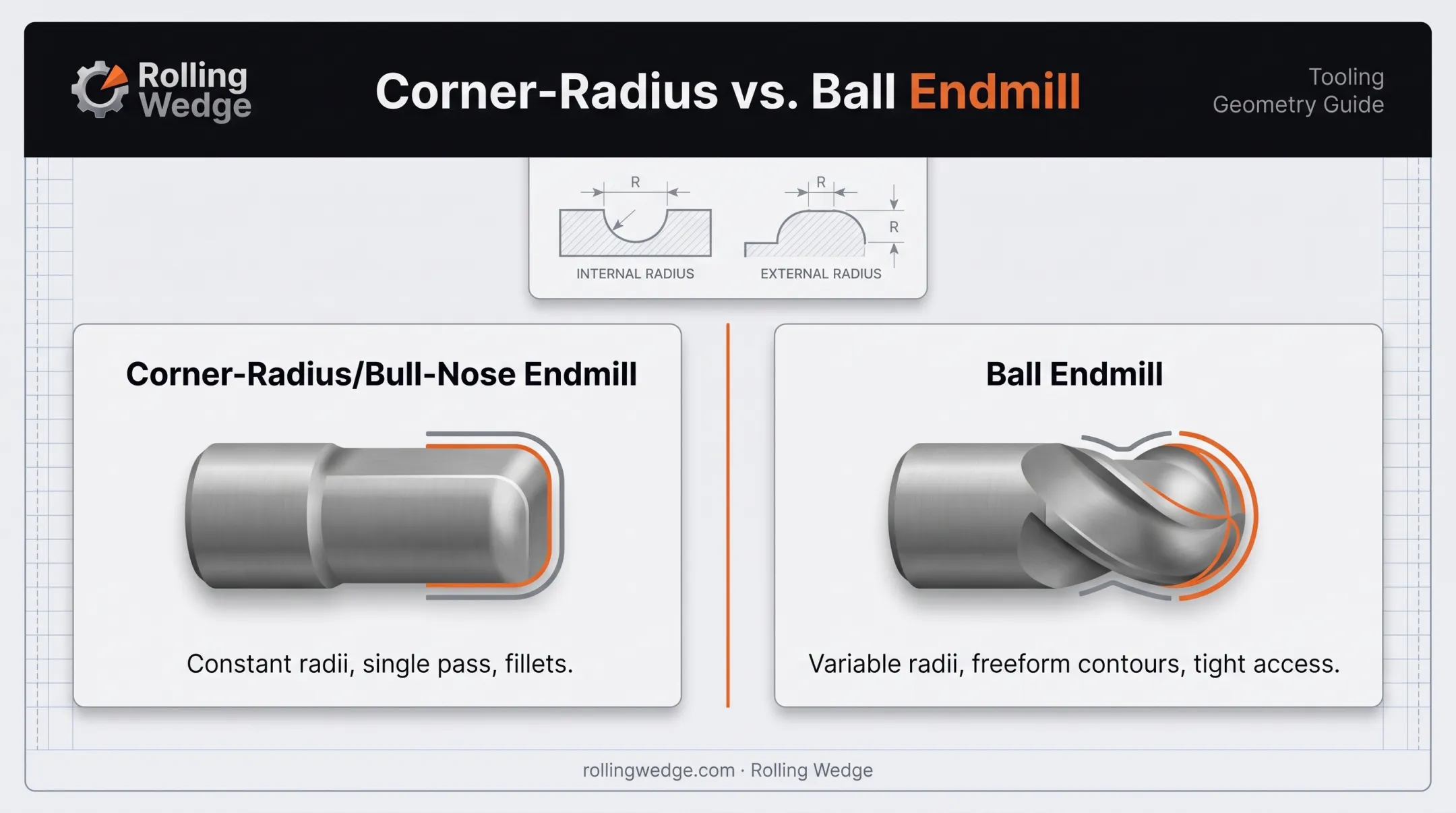

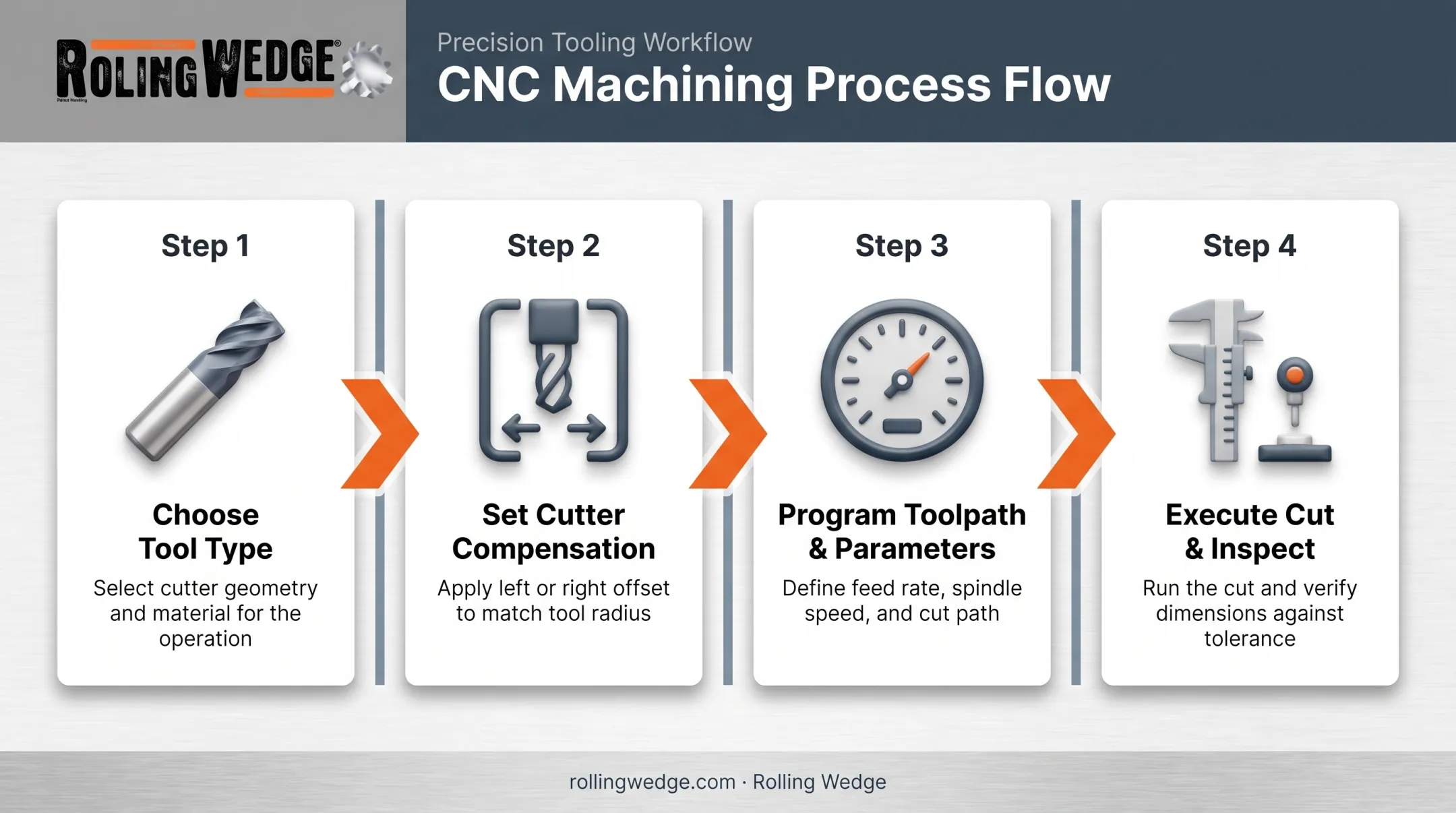

Step 1: Choose the Right Tool for the Radius Type
Start by determining whether the radius is internal (a pocket corner or inside fillet) or external (an edge break or outside shoulder). That choice sets the tool type and the path strategy.
- Corner-radius/bull-nose endmill: Best for constant radii cut in a single pass, such as a fillet along a pocket wall
- Ball endmill: Better for variable radii, freeform contours, or tight-access spots where a fixed-radius tool won't fit
Kennametal's beginner's guide to end mills draws the same line: ball nose mills for curved surfaces and 3D shapes; corner-radius mills for rounded corners, fillets, and edges. Match the tool's nominal diameter and corner radius to your print spec before you open the CAM software.
Step 2: Set Up Tool Radius/Cutter Compensation
Cutter compensation (G41/G42) determines whether your toolpath actually lands where you programmed it.
- Confirm G41 (left) or G42 (right) compensation is set correctly for the direction of travel
- Position the tool at least one full cutter radius away from the first surface before engaging the cut
- Make sure your CAM program cancels compensation (G40) and resets it cleanly for every new contour
Haas's mill operator's manual is clear on the rule: turn compensation on during a linear move at least as long as the cutter radius. Never enable or cancel it inside a G02/G03 arc move. Skip this and you risk a gouge on the first pass.
Step 3: Program the Toolpath and Set Cutting Parameters
Corner-radius tools don't cut like sharp-corner endmills, so your feed math needs to change too.
- Use the minor (effective) diameter (nominal diameter minus twice the corner radius) for feed calculations, not the full nominal diameter
- Drop spindle speed roughly 10-20% compared to a sharp-corner tool running the same depth of cut
- Choose the largest radius the design tolerates; larger radii mean less tool engagement, less heat, and shorter cycle times
Sandvik's milling formulas guide separates cutting speed (vc) from effective cutting speed (ve) at the engaged diameter, and treats feed-per-tooth as the value that sets table feed. Guessing at these numbers is how tools break early.
Step 4: Execute the Cut and Inspect the Finish
Don't program a sharp 90-degree direction change into a radius toolpath . Run an arced or rounded path instead. This alone eliminates a lot of chatter and edge stress.
After the first pass:
- Check the actual radius with a radius gauge or CMM
- Look for witness marks, chatter lines, or gouging on the surface
- Adjust offsets or feed if anything looks off before running the full job
Do not skip inspection. A radius off by even a few thousandths can fail a fit-check later, and it is far cheaper to catch on part one than part fifty.
When Should You Mill a Radius vs. Use Another Corner Treatment?
Not every corner needs a fully milled radius. Mill one when you need:
- Structural fillets that reduce stress concentration
- Aesthetic or ergonomic edges
- Smooth mating surfaces for assembly
Skip a full radius when the design calls for an extremely tight radius relative to available tooling. You'll burn cycle time and tool life chasing a feature a smaller, weaker tool can barely survive.
Feature depth compounds this problem. Deeper pockets need longer, thinner tools, which limits the achievable radius and raises cost and deflection or breakage risk.
For many corners, a simpler treatment is enough:
- Chamfer for fast deburring and assembly clearance
- Broken edge when you only need to remove sharpness
- Partial or blended fillet only in high-stress zones
What You Need Before Milling a Radius
Proper preparation of tooling and programming directly affects your final radius accuracy and finish. Skipping prep here shows up later as scrap.
Equipment Requirements
Confirm you have the right machine and tooling before you cut:
- CNC mill with arc interpolation (G02/G03) and cutter radius compensation
- Correct radius or ball endmill for the job
- Control support for the compensation mode in your active plane
Haas documents G02 as clockwise and G03 as counterclockwise circular interpolation in its mill G-code reference. Confirm your control supports the mode you plan to use.
Material and Design Readiness
A flat, properly fixtured workpiece matters as much as the program itself. Your CAD/CAM file should specify exact radius dimensions and tolerances before you generate a single toolpath.
Skill and Verification Readiness
The operator running the job needs to understand compensation commands cold. You also need a radius gauge or CMM to verify the finished feature against print.
Key Parameters That Affect Results When Milling a Radius
Radius quality comes down to a handful of interrelated variables. Get one wrong and the others can't compensate.
Tool Radius vs. Design Radius The milling cutter's radius must be equal to or smaller than the internal radius being cut. Mismatched sizing causes gouging, poor finish, or a feature that's simply impossible to complete: the tool physically cannot fit into a corner smaller than itself.
Feed Rate and Spindle Speed Corner-radius tools have less flute engagement than sharp tools at the same depth of cut. Wrong speeds lead to chip crowding, heat buildup, and tool wear that shows up much sooner than expected.
Depth of Cut and Radial Engagement Full engagement concentrates cutting force right at the radius. According to Sandvik's guide on milling inside corners, entering an inside corner increases radial arc engagement and cutting-edge load, which can cause instability, undercutting, and edge breakdown. In brittle materials, excessive engagement risks outright chipping.
Feature Depth vs. Tool Size Smaller tools needed for tight or deep radii have less reach and rigidity. This inverse relationship (smaller radius, deeper pocket, weaker tool) drives cost and cycle time up together.
Managing engagement and load at a cutting edge is a universal machining problem, not just a metal-shop concern. It's the same principle Rolling Wedge applies in road milling tool design: controlling how much of the cutting edge is loaded at once directly determines tool life and finish quality, whether you're milling a fillet in aluminum or a lane of asphalt.
Common Mistakes When Milling a Radius
Radius cuts fail more often from setup errors than from machine limits. Avoid these four mistakes before you run the toolpath:
- Oversizing the tool radius relative to the design's minimum internal radius, making the feature physically uncuttable
- Forgetting to cancel and reset cutter compensation between contours, which corrupts the toolpath on the next cut
- Running radius tools at sharp-tool feed rates, causing poor chip evacuation and premature breakage
- Ignoring the radius-vs-depth tradeoff, which inflates budget and lead time on deep, tight features
Troubleshooting Issues While Milling a Radius
Even well-planned radius cuts can go sideways on the job. Use this chart to pin down vibration, finish marks, early tool failure, and tolerance misses.
| Problem | Likely Cause | Fix |
|---|---|---|
| Chatter or vibration during the cut | Worn tools, excessive ground speed, or abrupt depth changes in the arc | Replace worn tools, slow travel speed, and ease into depth instead of diving in |
| Gouging or a visible line on the finish | Inconsistent depth control or an uneven starting surface | Confirm grade/slope control; hold steady depth through the radius |
| Premature wear or breakage | Tooling mismatched to the surface, or aggressive passes on mixed asphalt and concrete | Match tools to the material; ease load on transitions; pull dull picks before they shatter |
| Radius out of tolerance | Inconsistent machine path or incorrect drum setup | Mark the layout, use stringline or GPS guidance, and verify drum width and overlap |
Alternatives to Milling a Radius on a CNC Mill
Milling isn't always the most efficient route, depending on geometry, volume, and radius size.
Deburring/Edge-Breaking Tools
Better for small cosmetic radii or chamfers where tight tolerances don't matter. These tools are faster and cheaper, but less consistent.
Modern Machine Shop notes that even cross-hole deburring can be difficult to perform consistently. Not suitable for structural fillets.
CNC Turning (Lathe)
Ideal for radii on cylindrical or rotationally symmetric parts, with excellent surface finish. It simply can't produce non-rotational radii: a lathe removes material from the OD or ID of a rotating workpiece, full stop.
3D Printing or Casting
Useful for complex, variable radii across an entire part during prototyping or low-volume runs. You avoid tooling limitations but generally get lower precision and different material properties than milling delivers.
Conclusion
Milling a radius successfully comes down to two things: matching tool radius to the design requirement, and setting up compensation correctly before the first cut. Most failures trace back to a parameter mismatch or a skipped prep step, not bad luck.
Balance tool size, feed, speed, and radius design together rather than optimizing one in isolation. That balance is what delivers the best cycle time, finish quality, and cost on a CNC mill.
Frequently Asked Questions
What is a radius in machining?
A radius is a curved transition, internal or external, on a part's edge or corner, as opposed to a sharp 90-degree angle. The drawing specifies the exact size and tolerance.
Is milling harder than lathe work?
Generally, yes. Milling involves more complex, multi-axis toolpaths for non-rotational geometry, while a lathe cuts single-axis rotational features.
What is the minimum radius a CNC mill can cut?
It equals the radius of the smallest usable tool for that operation. Going smaller risks tool breakage or requires specialty micro tooling.
Can I use a ball endmill instead of a corner-radius endmill?
Yes, for variable or tight-space radii. Expect more passes and a contoured pocket bottom rather than a flat one.
Why does my milled radius have chatter marks?
Usually sharp toolpath turns, excessive tool engagement, or feed/speed settings that weren't adjusted for the corner geometry.
How do I calculate feed rate for a corner-radius endmill?
Base it on the minor diameter (nominal diameter minus twice the corner radius), not the full nominal diameter. Using the wrong figure is the top cause of premature tool wear.
